How Google Authenticator Works Under The Hood

A Deep Dive Into Google Authenticator & Coding It From Scratch

---

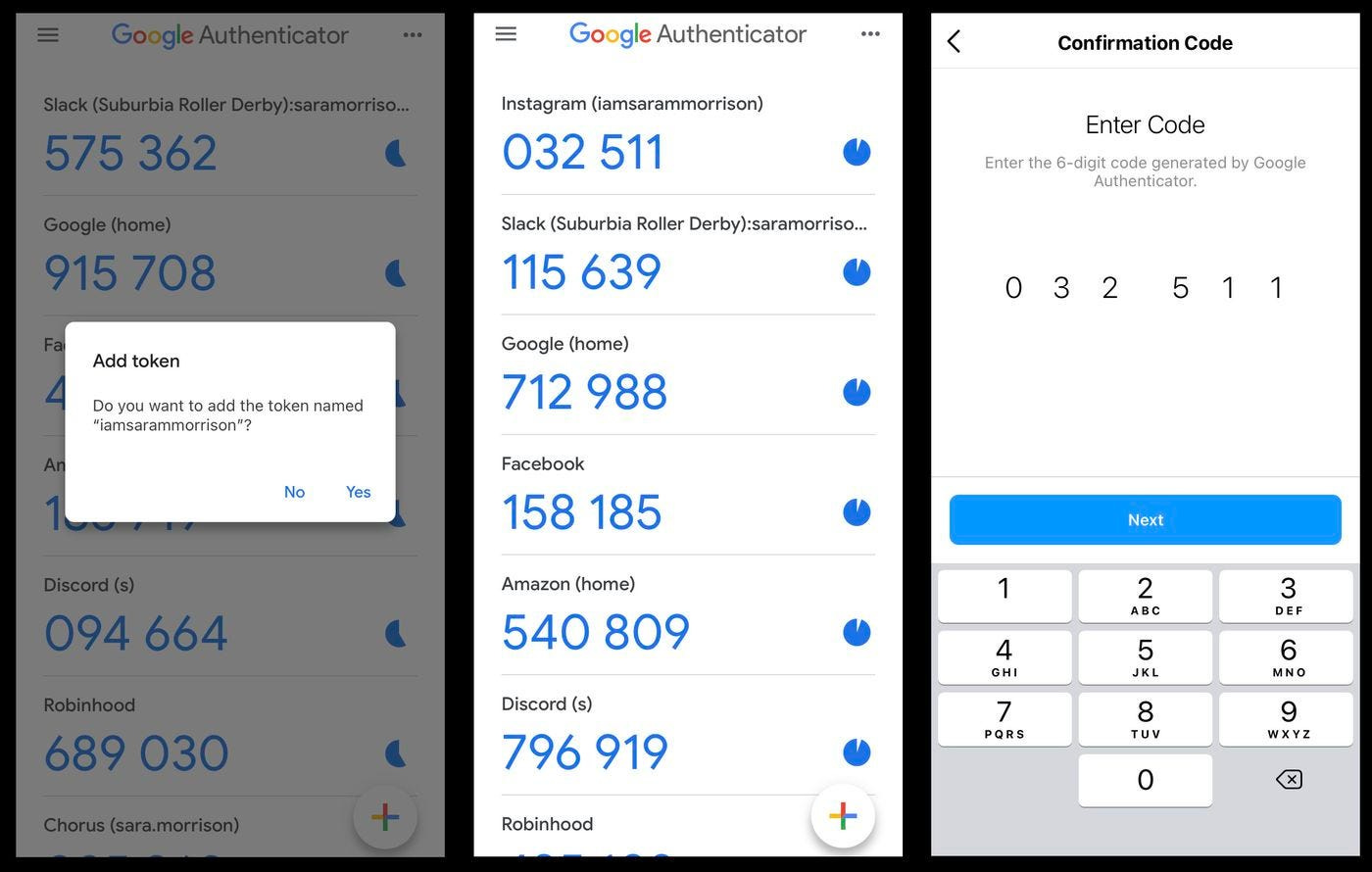

Source: Vox

Traditional authentication methods use username and password to login to accounts/ access funds.

But, Passwords are not secure enough as a single point of failure (password leak) can compromise your account.

Hence, the practice of 2-Factor Authentication (2FA) became popular.

---

What Is 2-Factor Authentication?

Two-factor authentication (2FA) is a method of confirming a user’s identity by using a combination of two different factors:

1. Something You Know

This could be a password, a PIN, or answers to secret questions.

2. Something You Have

This could be a physical object (card/ fob), or a trusted device like a smartphone where an authentication app is installed or to which a code containing SMS can be sent.

Or

2. Something You Are

These are biometrics like fingerprints, voice patterns, or iris scans.

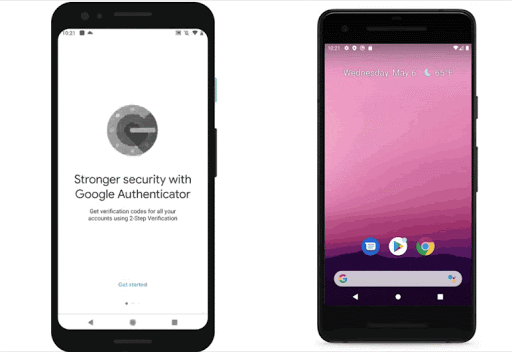

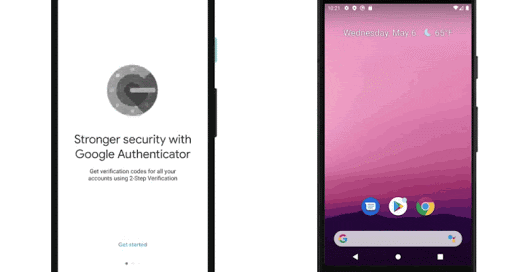

Source: Google GIF By Mashable (GIPHY)

---

The Issue With SMS-Based 2-Factor Authentication

SMS-based 2FA sounds convenient but comes with its own risks.

An attacker can intercept the SMS messages containing the 2FA codes (called a Man-in-the-middle attack).

They can also use a device known as a Stingray (IMSI catcher) to mimic a cell tower and intercept mobile traffic.

This can compromise your account’s security.

These problems are mitigated by using Authentication apps like Google Authenticator/ Authy.

Photo by Jefferson Santos on Unsplash

---

How Does Google Authenticator Works?

The basic online on how Google Authenticator works is as follows:

1. Secret Key Generation

The service that hosts your account generates a random and unique key.

This key is shown as a secret key or in the form of a QR code.

2. Setup With Google Authenticator

You scan this QR code with the Google Authenticator app and the secret key is transferred to the app without it ever being exposed.

In this way, the service’s server and your Google Authenticator app share a common secret key.

3. OTP Generation

Every time you log into the service, Google Authenticator uses this secret key and the current time to generate a Time-Based One-Time Password (TOTP).

4. OTP Input

You input this OTP on the service’s login page as a second form of verification along with your password.

5. OTP Verification

The service, which also holds a copy of the secret key, generates its own OTP and checks if it matches the one you inputted.

If they match, it confirms that you have access to the secret key and thus verifies your identity.

You are logged in to your account once the authentication is successfully performed.

---

Deep Dive

Let’s learn in detail how this happens.

1. Secret Key Generation

The service’s server generates a secret key using a Cryptographically Secure Pseudorandom Number Generator (CSPRNG), which produces random numbers suitable for cryptographic uses.

Some CSPRNGs are:

• Fortuna

• Yarrow

• ChaCha20

In Python, this can be done using the secrets module as follows.

The secrets module uses the os.urandom() function for generating cryptographically secure random numbers.

import secrets
import base64

def generate_secret_key():
    # Generate Secret Key (20 random bytes)
    secret_key_bytes = secrets.token_bytes(20)

    # Convert the bytes to a base32 string
    secret_key_base32 = base64.b32encode(secret_key_bytes).decode('utf-8')

    # Remove the padding characters ('=') from the base32 string
    secret_key_base32 = secret_key_base32.rstrip('=')

    return secret_key_base32

# Generate the secret key
secret_key = generate_secret_key()

print(secret_key)

#Output: EPZXTXE5OBYM4QAA6LA2ZZ4AAQZFEB7N

2. Generation of Authentication URI & QR Code

An authentication URI is generated using the secret key.

This is in the following format:

otpauth://TYPE/LABEL?PARAMETERS

In the above:

• TYPE is either hotp or totp, indicating the type of OTP algorithm used

• LABEL is used to identify which account the secret key is associated with

• PARAMETERS is a set of parameters in the form of key-value pairs required by the OTP algorithm.

The URI generation can be performed in Python using the pyotp library.

We will discuss TOTP soon.

import pyotp

# Generate a TOTP object with the secret key
totp = pyotp.TOTP(secret_key)

# Generate the otpauth URL
otpauth_url = totp.provisioning_uri(name='ashish@example.com', issuer_name='SecureApp')

print(otpauth_url)
#Output: otpauth://totp/SecureApp:ashish%40example.com?secret=EPZXTXE5OBYM4QAA6LA2ZZ4AAQZFEB7N&issuer=SecureApp

This URI is then converted into a QR code.

This is done in Python using the qrcode library.

import qrcode

# Generate the QR code
qr_code = qrcode.make(otpauth_url)

# Save the QR code as a PNG file
qr_code.save('qrcode.png')

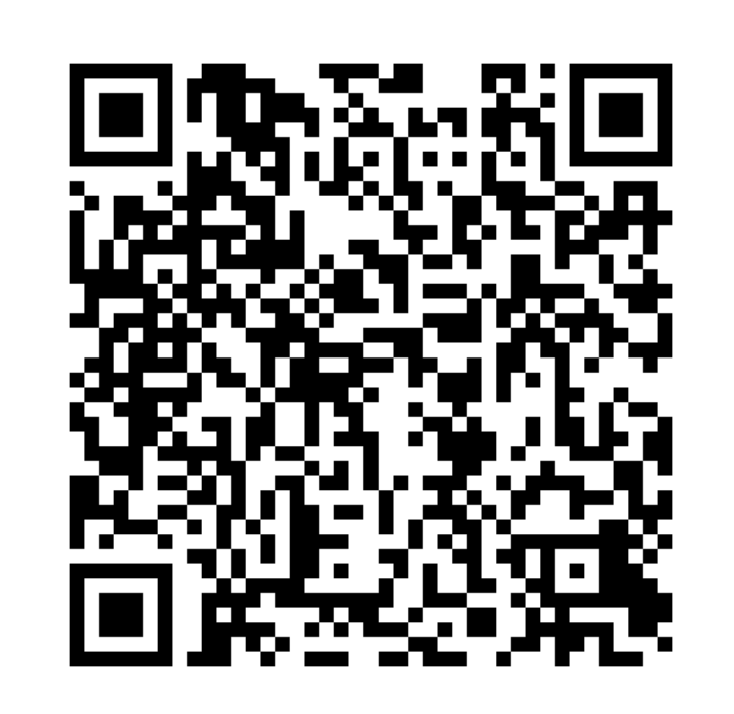

Generated QR Code (Image by author)

This QR code is scanned by the user’s smartphone using the Google Authenticator app.

After this step, both the service’s server and the user’s Google Authentication app share the secret key.

Both also agree on a time step value for which an OTP will remain valid (usually 30 or 60 seconds).

3. Generating Time-Based One-Time Password (TOTP)

The Time-Based One-Time Password (TOTP) Algorithm is used to generate a one-time password as follows.

A. Convert the Secret key To Bytes
The secret key in the form of a base32 string is converted back to bytes.

Note that padding characters (=) are added to the end of the secret key to make its length a multiple of 8, which is necessary for base32 decoding.

B. Generate the input for the algorithm
The TOTP algorithm uses the current time to generate the one-time password.

The current Unix timestamp (the number of seconds since 1970–01–01 00:00:00 UTC) is divided by the time step value (say 30 seconds), and the result is converted into bytes. This is called the Counter.

C. Calculate the HMAC-SHA1 hash
Calculate an HMAC-SHA1 value using the secret key and the Counter as input.

D. Extract a 4-byte value from the hash
A 4-byte (32-bit) value is obtained from the HMAC result at random indexes.

This is done by calculating an offset using the bitwise AND operation between the last byte of the HMAC-SHA1 hash and the hexadecimal number 0xf which is 15 in decimal and 1111 in binary.

This results in a value between 0 and 15.

The 4 bytes starting at this offset are taken from the HMAC-SHA1 hash.

This adds more randomness to the process of OTP generation.

E. Convert the 4-byte value to a number
The 4-byte value is converted to a big-endian unsigned integer.

F. Reduce the number to the desired number of digits
The resulting number is quite large to be convenient for a one-time password.

It is shortened by taking the number modulo 10^d, where d is the desired number of digits (for example 6 ).

This can be done in Python as follows:

import base64
import hmac
import time
import struct

def generate_totp(secret_key_base32, timestamp, time_step=30, digits=6):
    # Add padding characters to the end of the string, if necessary
    while len(secret_key_base32) % 8 != 0:
        secret_key_base32 += '='

    # Convert the secret key to bytes
    secret_key_bytes = base64.b32decode(secret_key_base32)

    # Calculate the counter from the timestamp
    counter = int(timestamp / time_step)
    counter_bytes = struct.pack('>q', counter)  # '>q' means an 8-byte big-endian integer

    # Calculate the HMAC value
    hmac_value = hmac.new(secret_key_bytes, counter_bytes, digestmod='sha1').digest()

    # Extract a 4-byte value from the HMAC value
    offset = hmac_value[19] & 0xf
    four_bytes = hmac_value[offset:offset+4]

    # Convert the 4-byte value to a number
    number = struct.unpack('>L', four_bytes)[0]  # '>L' means a 4-byte big-endian unsigned long integer

    # Reduce the number to the desired number of digits
    otp = number % (10 ** digits)

    return otp

secret_key = 'EPZXTXE5OBYM4QAA6LA2ZZ4AAQZFEB7N' #Secret Key
timestamp = int(time.time()) # The current time

print(generate_totp(secret_key, timestamp))
#Output: 294307

4. Verification of OTP

The OTP is input by the user when logging into their account.

The service’s server performs the above calculations using the timestamp and the secret key.

If the result matches with the input OTP, the user is verified and logged in.

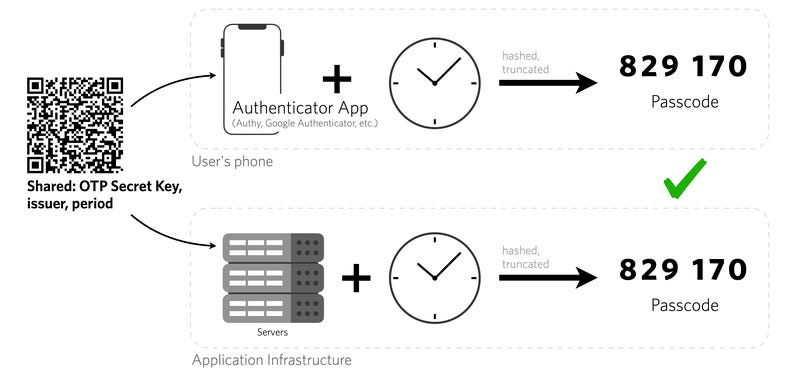

Source: Twilio

And, that’s how Google Authenticator works under the hood!
